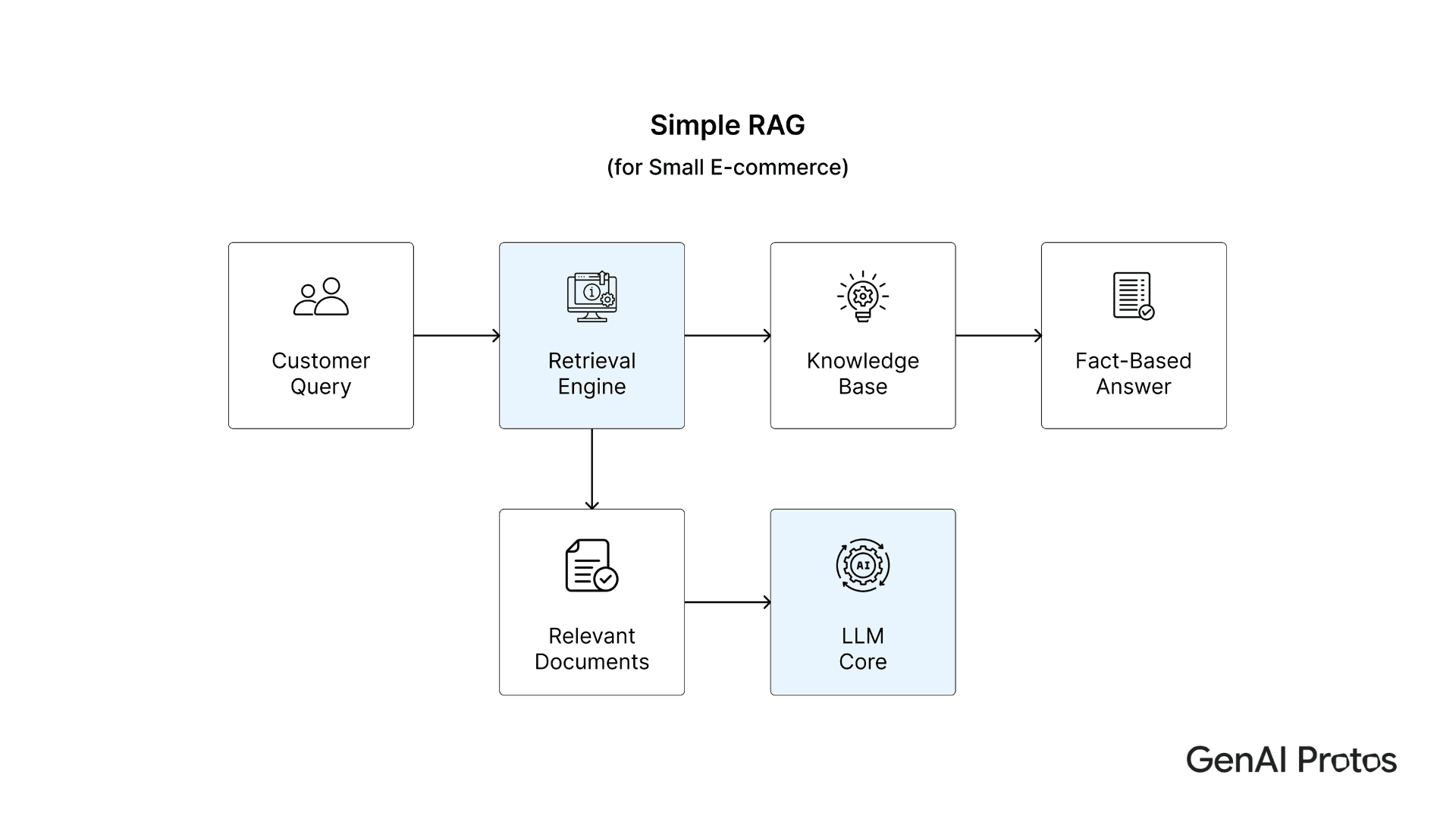

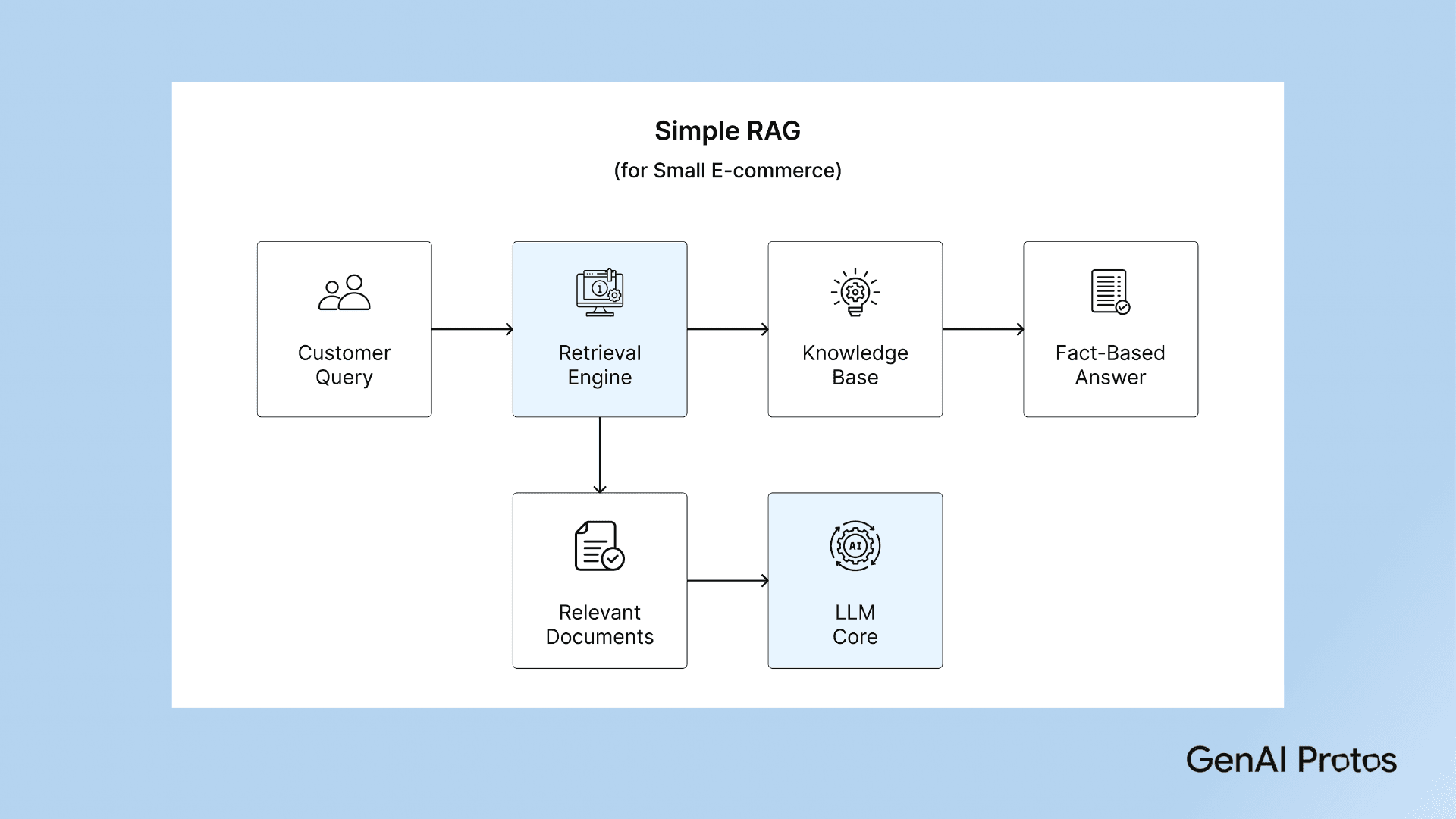

1. Simple RAG (Baseline Retrieval Architecture)
Simple RAG is the foundational architecture where an LLM is augmented with external knowledge retrieval. It relies on semantic search over a vector database to fetch relevant documents before generation.
The strength of Simple RAG lies in grounding. Instead of relying solely on pretrained parameters, the model conditions its output on retrieved enterprise data such as product documentation, internal knowledge bases, or policy repositories.
This architecture is efficient, easy to deploy, and suitable for use cases where queries are direct and knowledge sources are well-structured. However, it assumes that a single retrieval pass is sufficient and does not dynamically adjust reasoning depth.
Best suited for:
- Internal knowledge assistants
- FAQ automation
- Basic enterprise search systems

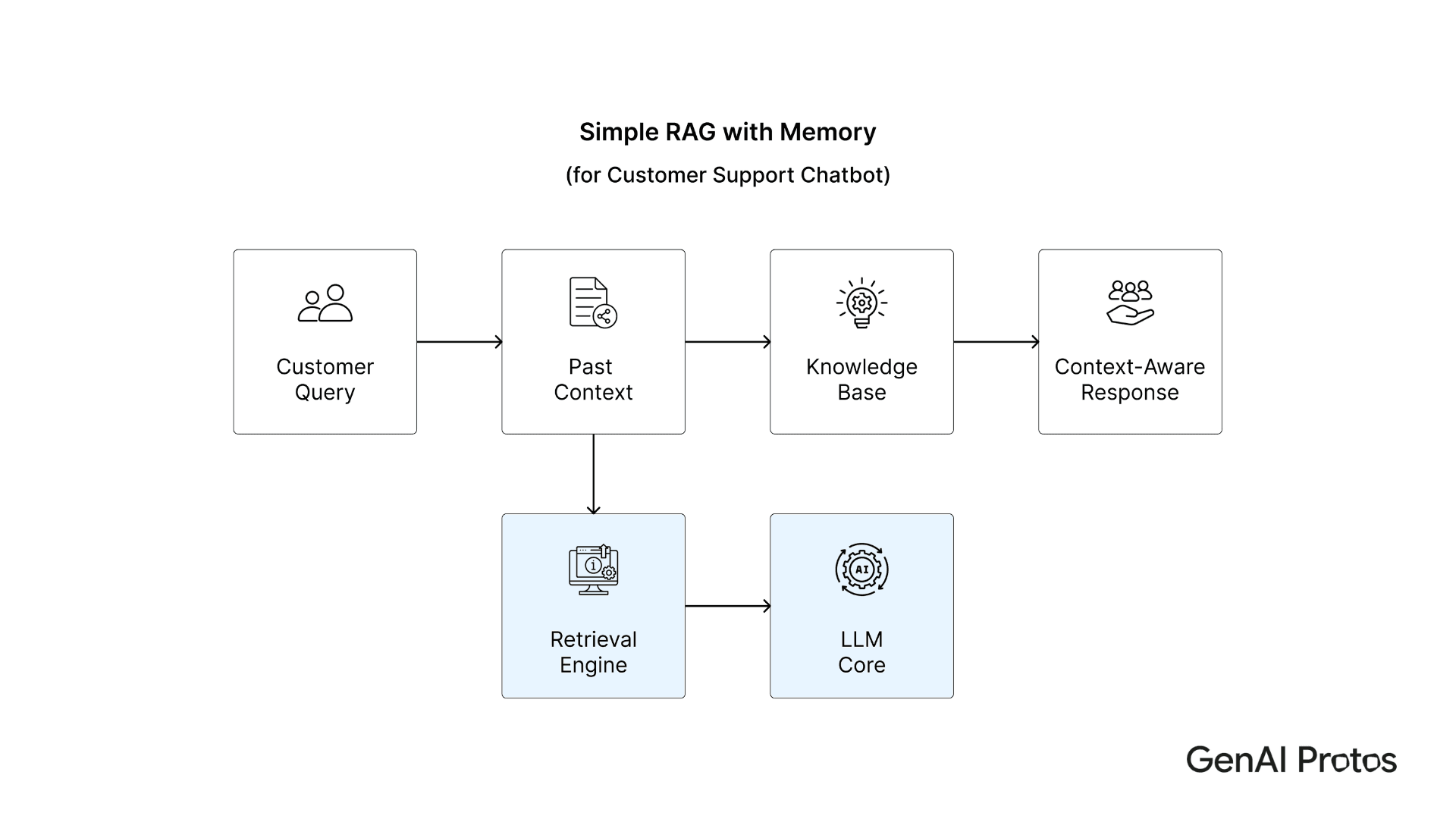

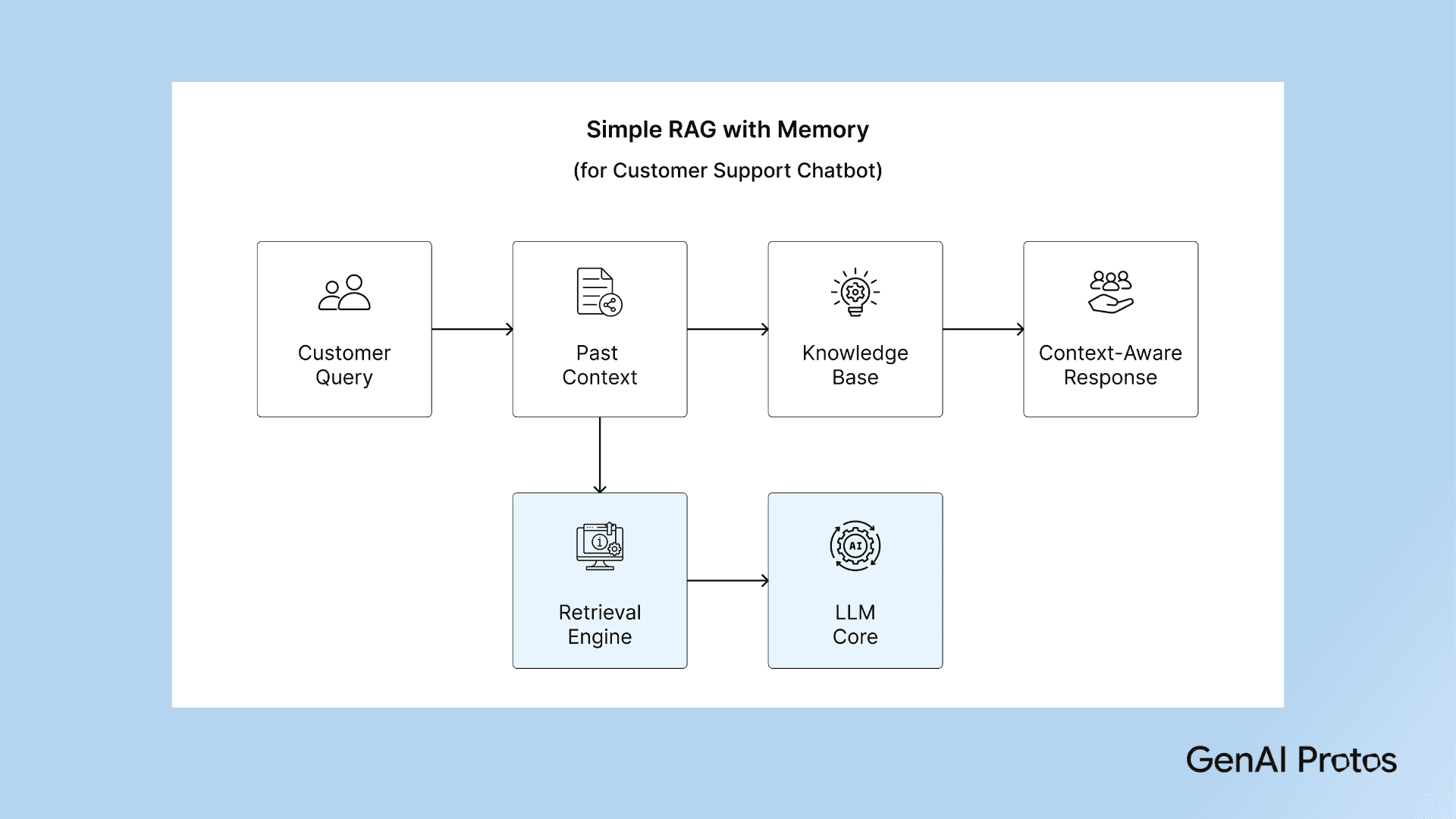

2. Simple RAG with Memory (Conversational RAG)
Conversational RAG extends the baseline architecture by incorporating session memory. Instead of treating each query independently, it stores prior interactions and injects contextual signals into retrieval and generation.
This architecture supports continuity in multi-turn conversations. Memory can be implemented using short-term buffers, vectorized chat history, or structured context stores.
It improves personalization and contextual alignment, especially in AI customer support, SaaS copilots, and enterprise productivity assistants. However, memory must be managed carefully to avoid context drift and prompt bloat.
Best suited for:
- AI support agents
- Conversational enterprise assistants
- Long-running user sessions

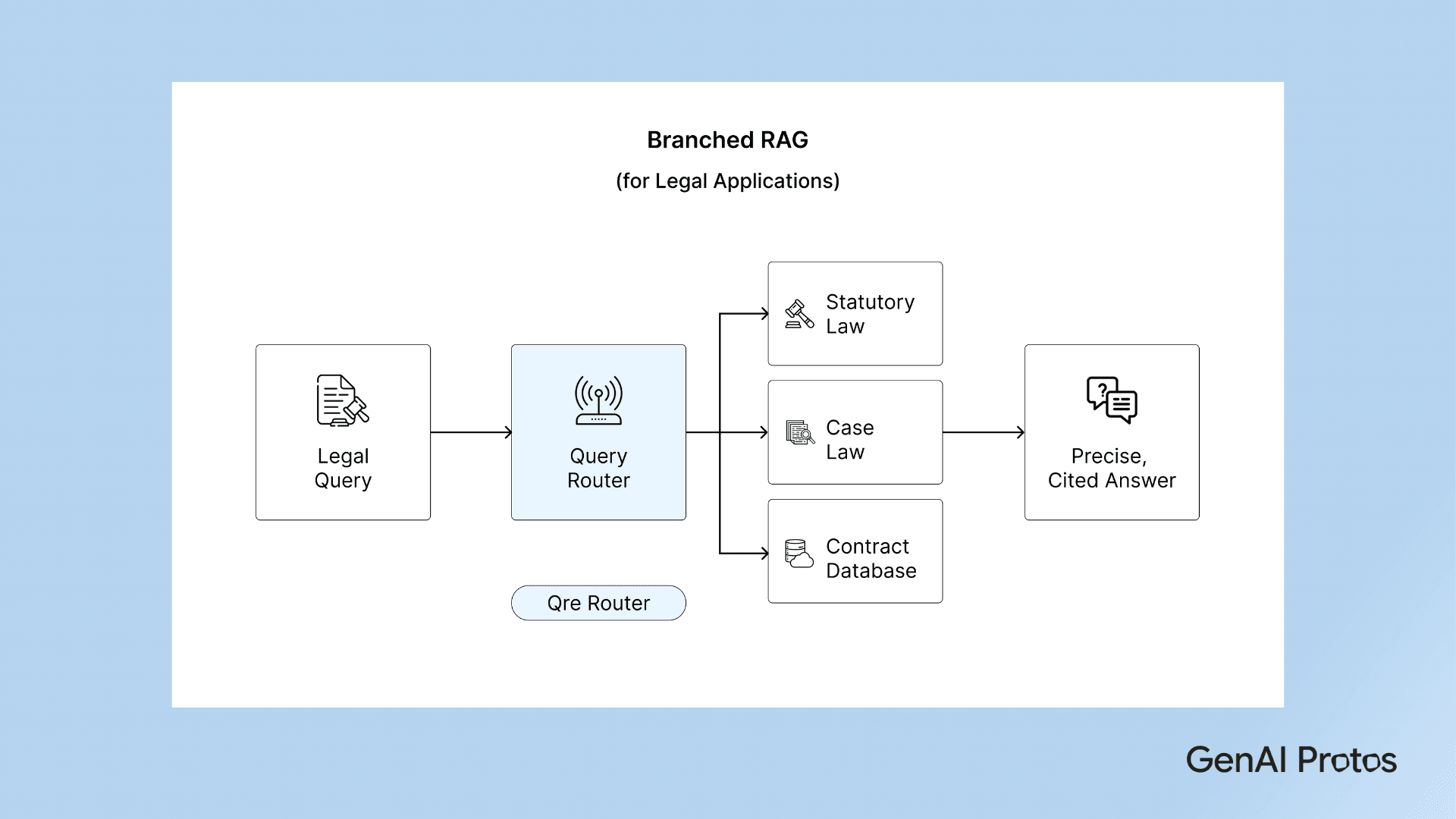

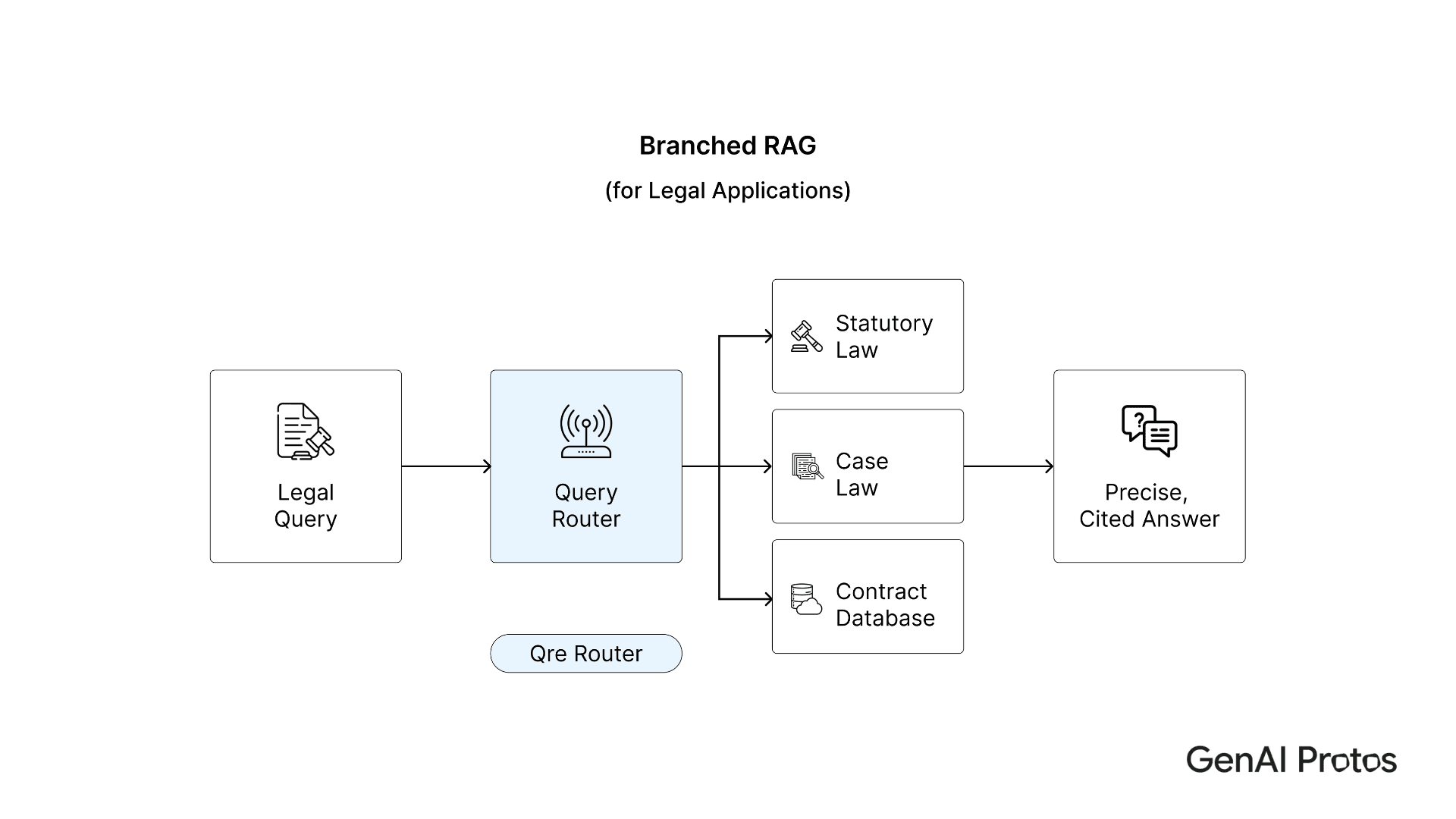

3. Branched RAG (Multi-Source Retrieval)
Branched RAG introduces query routing and parallel retrieval across multiple domain-specific data sources. Instead of searching one knowledge base, the system identifies relevant knowledge domains and retrieves information from each.
This architecture improves precision in environments where information is distributed across structured and unstructured sources. A legal query, for example, may require statutory databases, case law repositories, and contractual records simultaneously.
It reduces retrieval ambiguity and improves explainability because outputs are synthesized from clearly segmented knowledge domains.
Best suited for:
- Legal AI systems
- Financial analysis platforms
- Multi-domain enterprise search

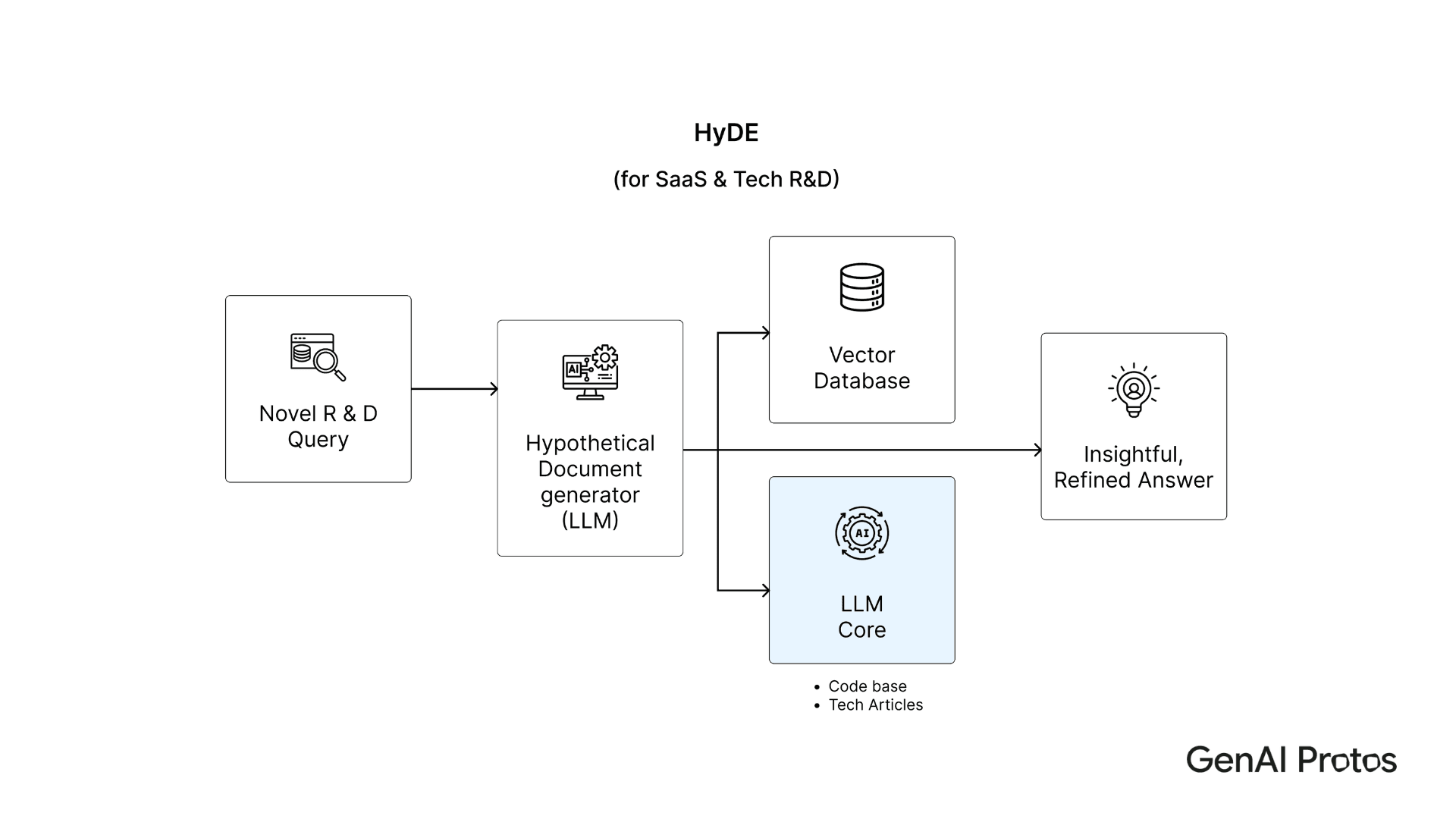

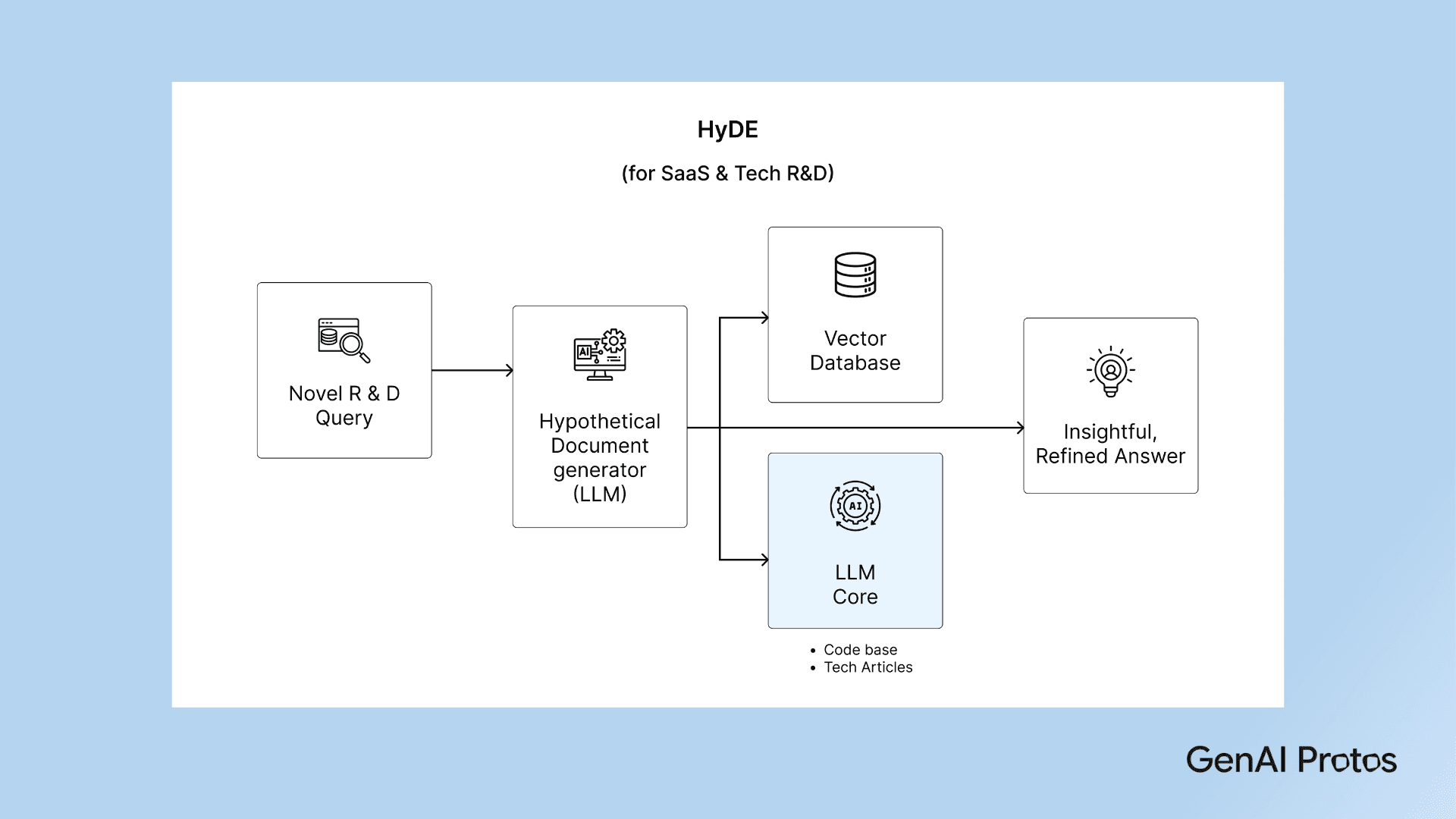

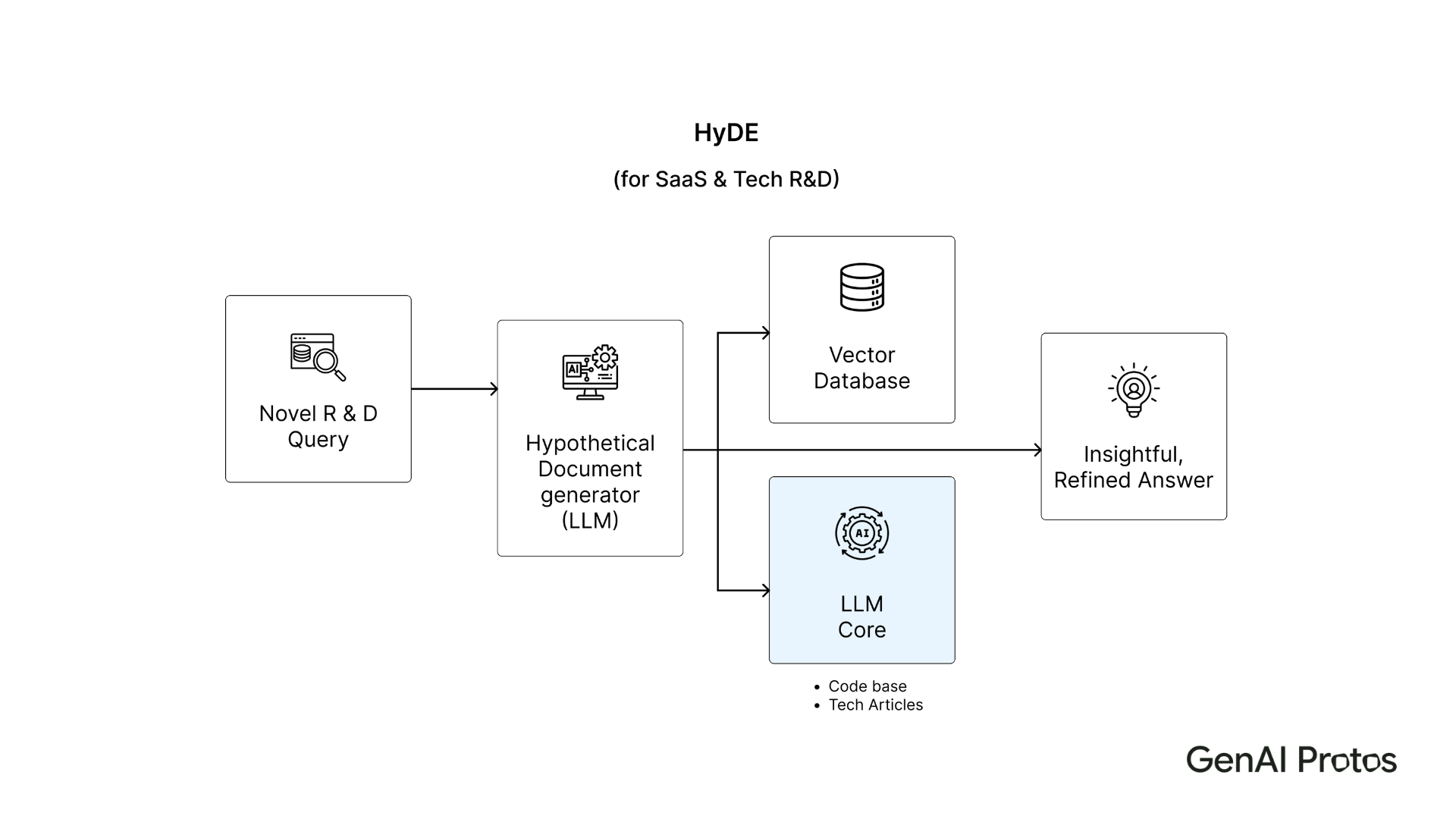

4. HyDE (Hypothetical Document Embedding)
HyDE enhances retrieval quality by generating a hypothetical answer before performing semantic search. The LLM predicts what an ideal answer might look like, converts it into embeddings, and retrieves documents that align with that semantic structure.
This approach is powerful when user queries are vague, exploratory, or lack precise terminology. It improves recall in technical domains where traditional query embeddings may not capture intent accurately.
HyDE is particularly effective in research-heavy environments and deep technical documentation systems where semantic alignment matters more than keyword similarity.
Best suited for:
- R&D systems
- Technical knowledge retrieval
- Innovation-driven AI workflows

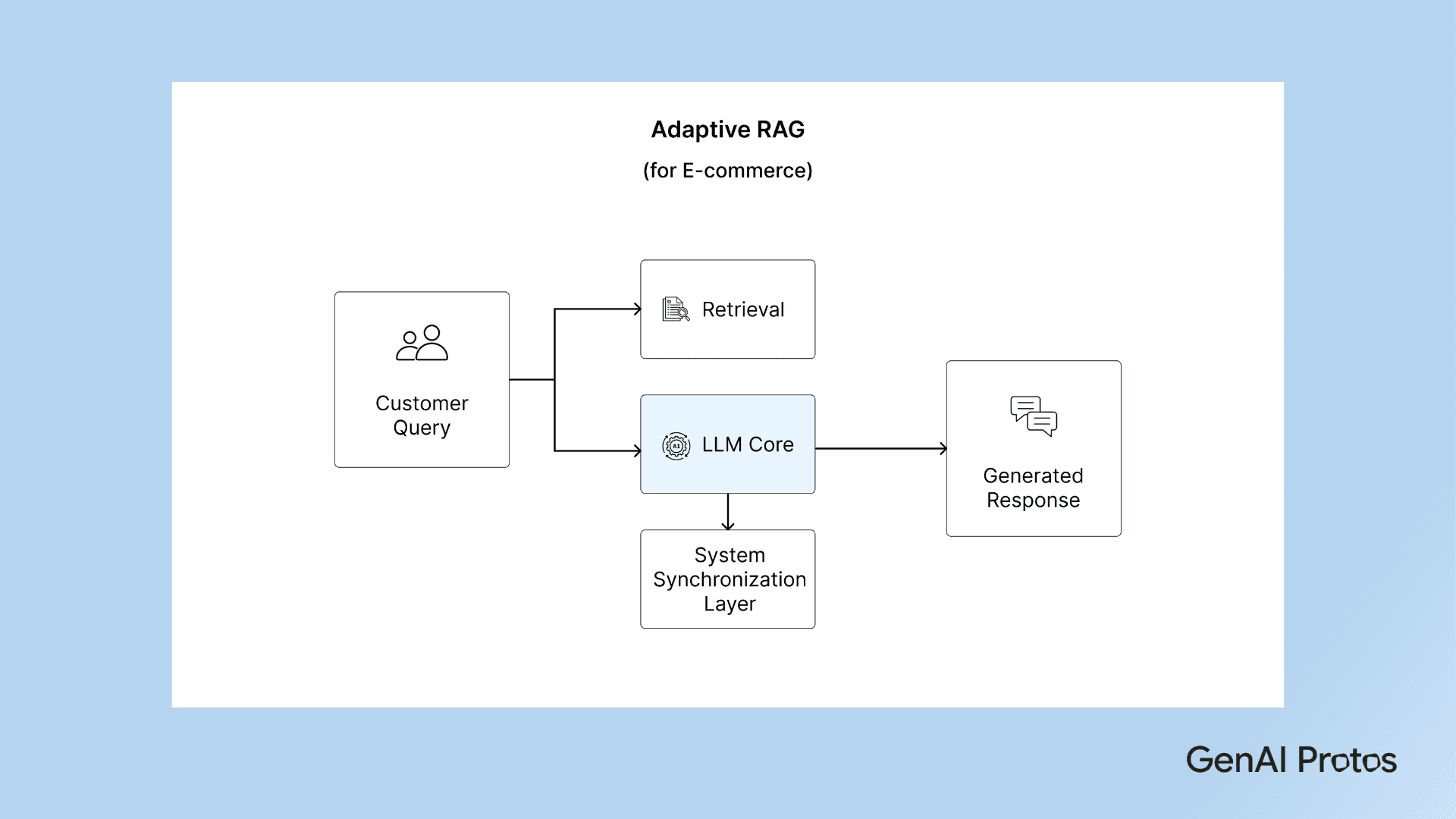

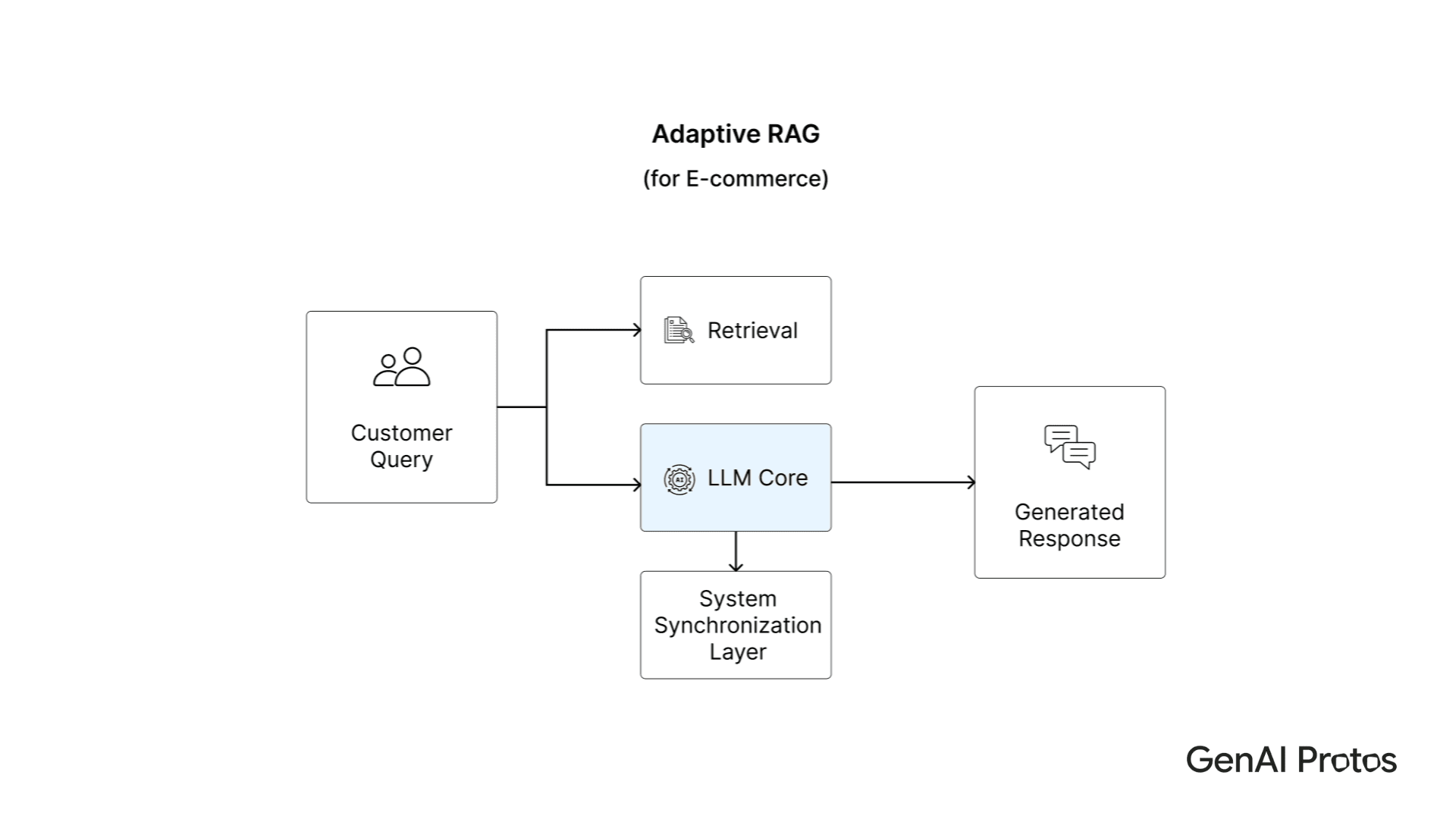

5. Adaptive RAG (Dynamic Retrieval Strategy)
Adaptive RAG introduces intelligence into retrieval orchestration. The system analyzes query complexity and dynamically adjusts retrieval depth, document count, or reasoning strategy.
For simple factual queries, it may perform lightweight retrieval. For analytical or ambiguous queries, it may expand search scope, perform re-ranking, or invoke iterative reasoning loops.
This architecture optimizes cost, latency, and performance in large-scale enterprise environments. It is especially valuable when handling heterogeneous workloads with varying complexity.
Best suited for:
- Large-scale e-commerce AI
- Enterprise copilots
- High-volume AI query systems

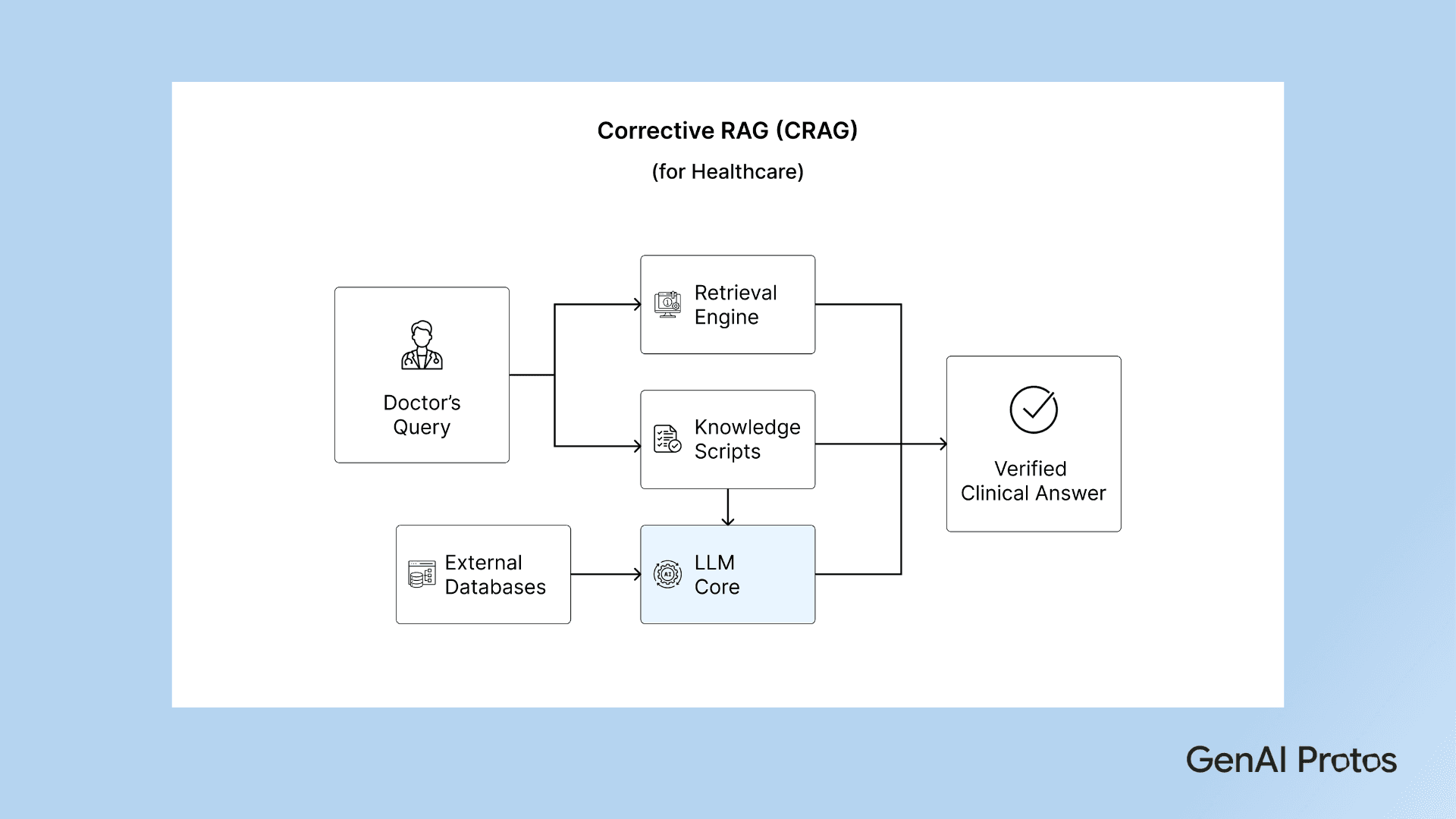

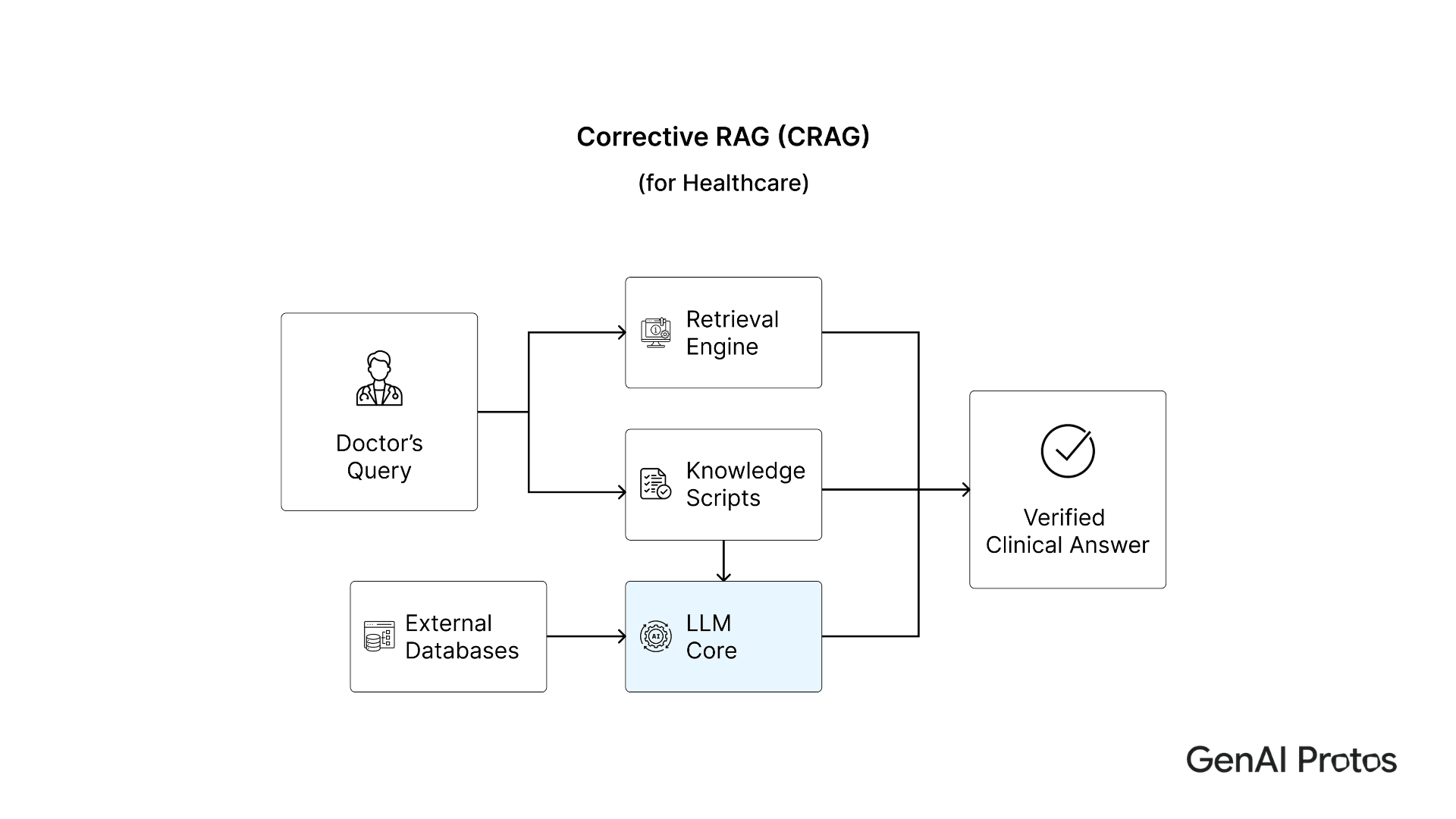

6. Corrective RAG (CRAG)
Corrective RAG adds validation layers after generation. Instead of assuming retrieved context is sufficient, it evaluates confidence scores, checks source reliability, and may trigger additional retrieval if inconsistencies are detected.
CRAG reduces hallucination risk in regulated environments. It may integrate external validation databases, structured rule engines, or confidence estimators before delivering a final response.
This architecture is designed for risk-sensitive industries where accuracy is critical and regulatory compliance is mandatory.
Best suited for:
- Healthcare AI
- Compliance automation
- Risk management systems

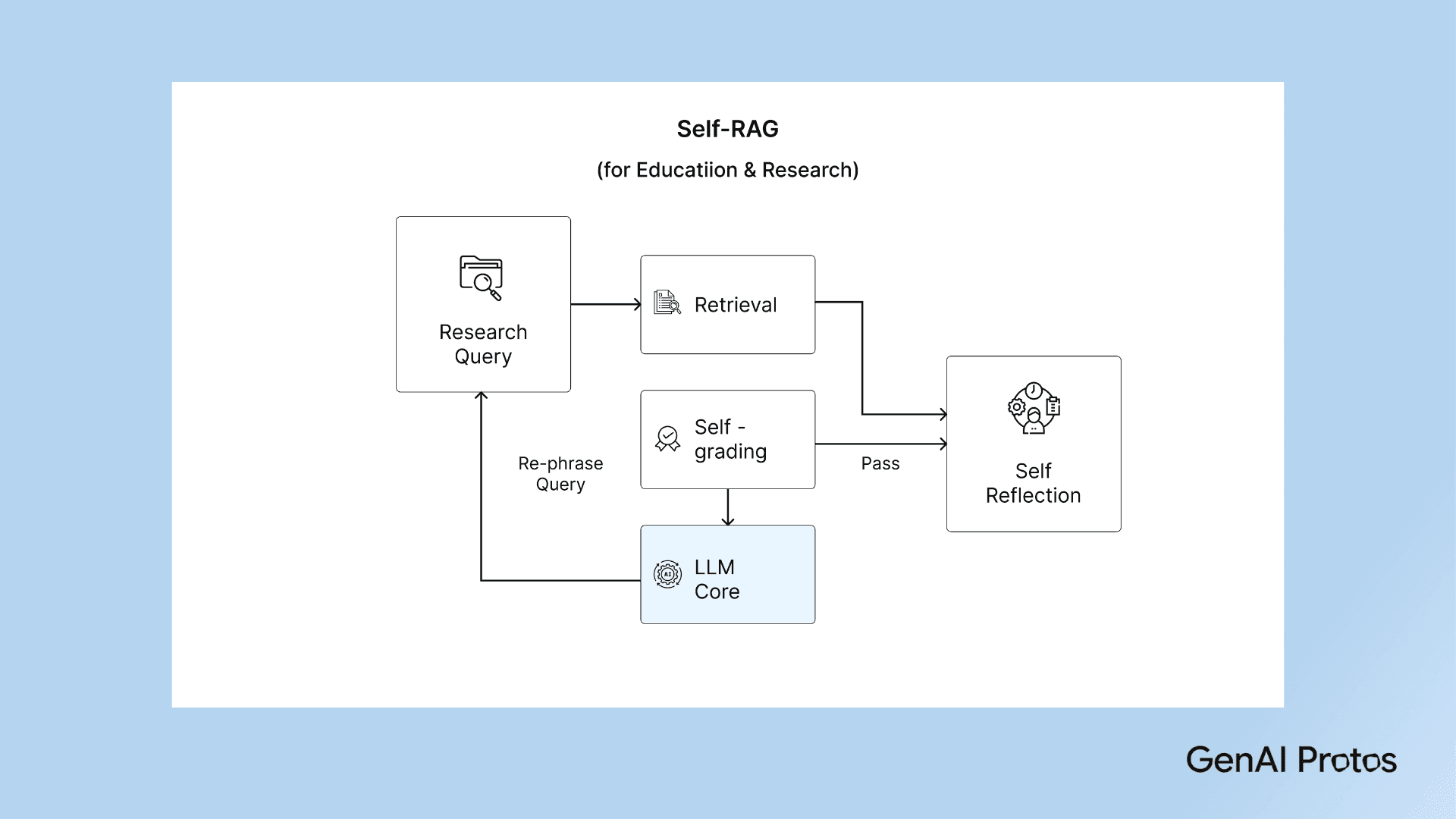

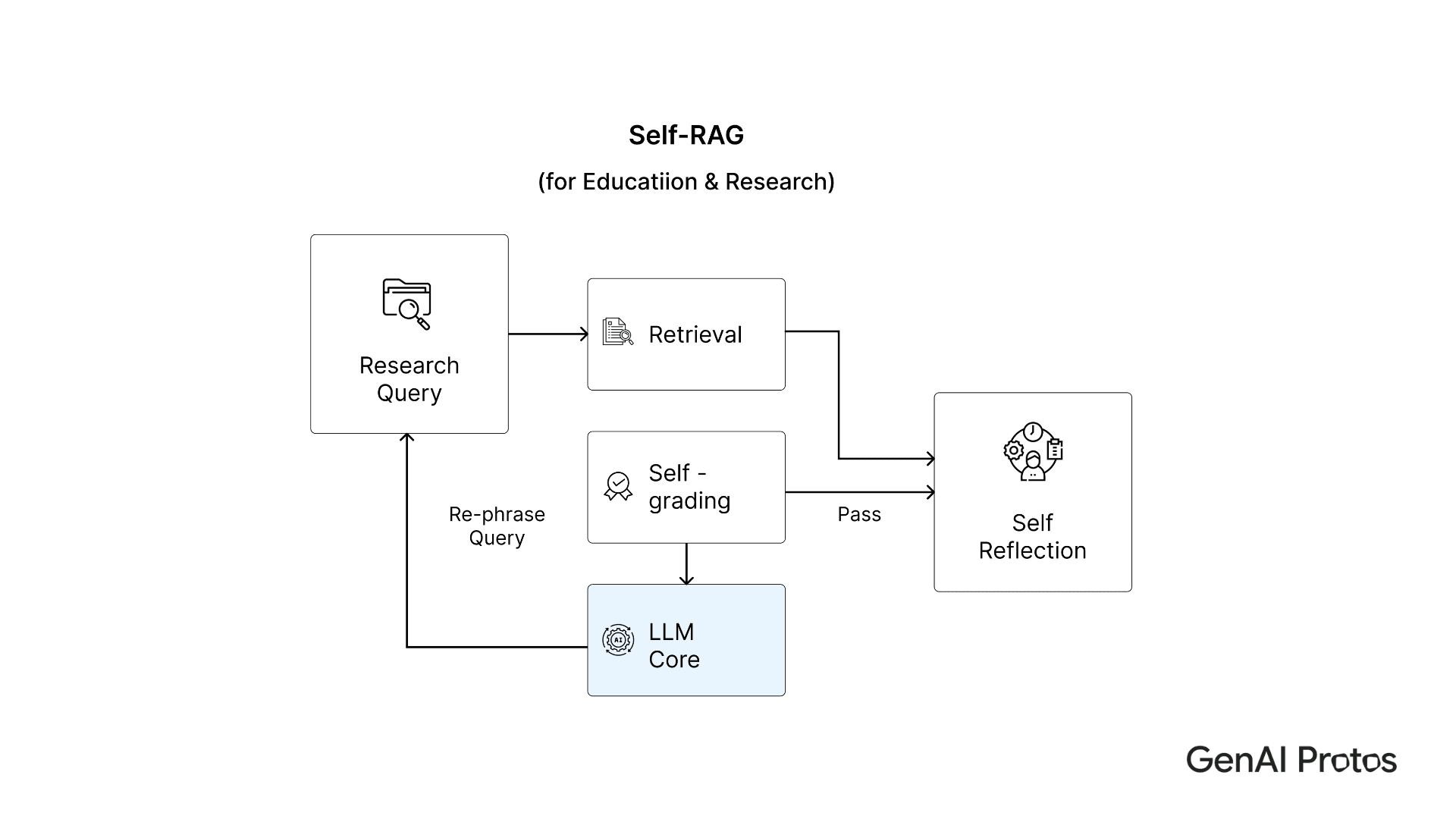

7. Self-RAG (Self-Evaluating Retrieval Loop)
Self-RAG introduces reflection mechanisms into the generation pipeline. The model critiques its own output and determines whether retrieved evidence sufficiently supports the answer.
If support is weak or incomplete, the system reformulates the query and performs additional retrieval iterations. This creates a self-correcting feedback loop without requiring external validators.
Self-RAG improves reasoning robustness and output reliability, especially in research-intensive or analytical systems where initial retrieval may be incomplete.
Best suited for:
- Research assistants
- Academic AI systems
- Analytical decision-support tools

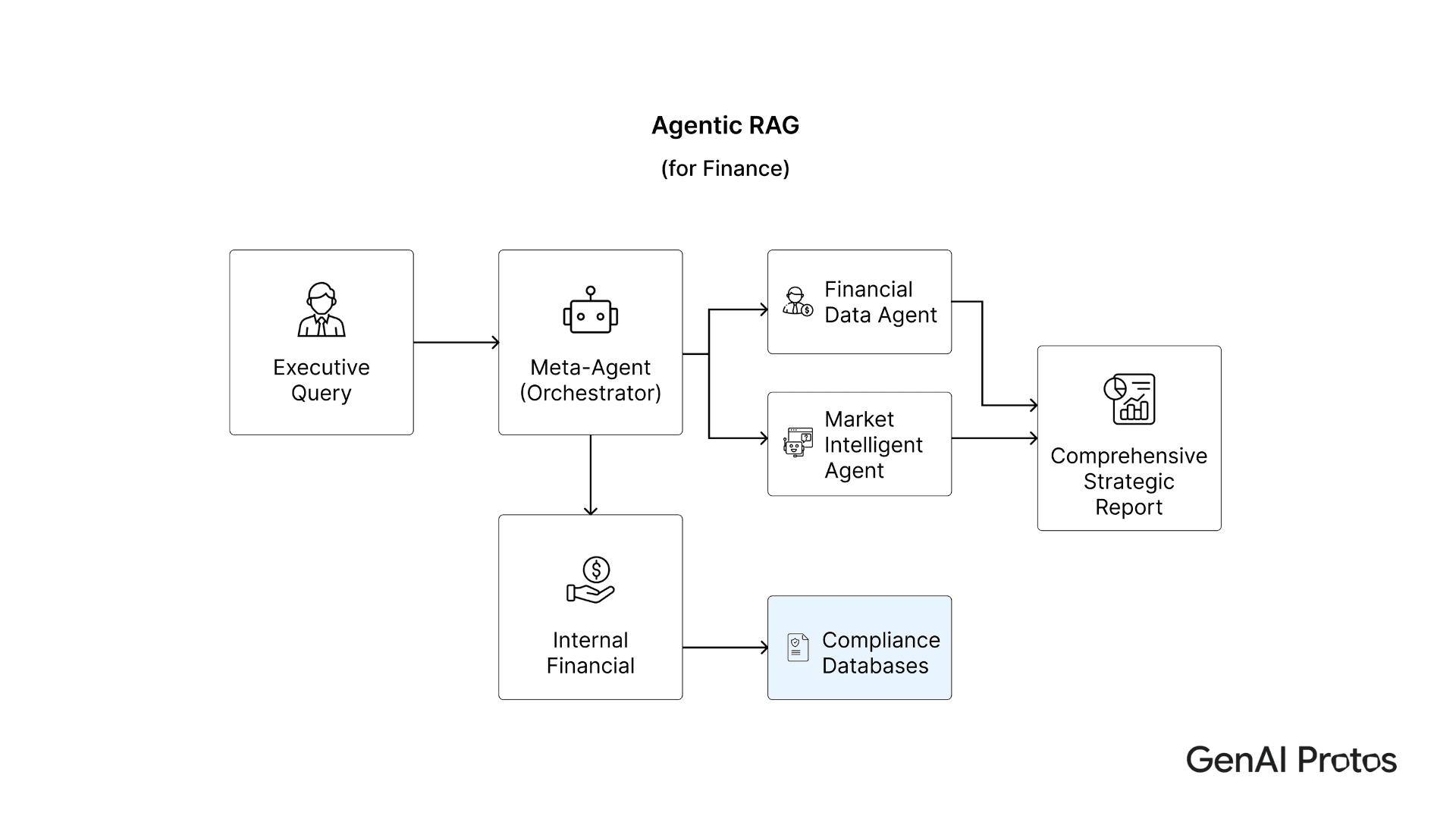

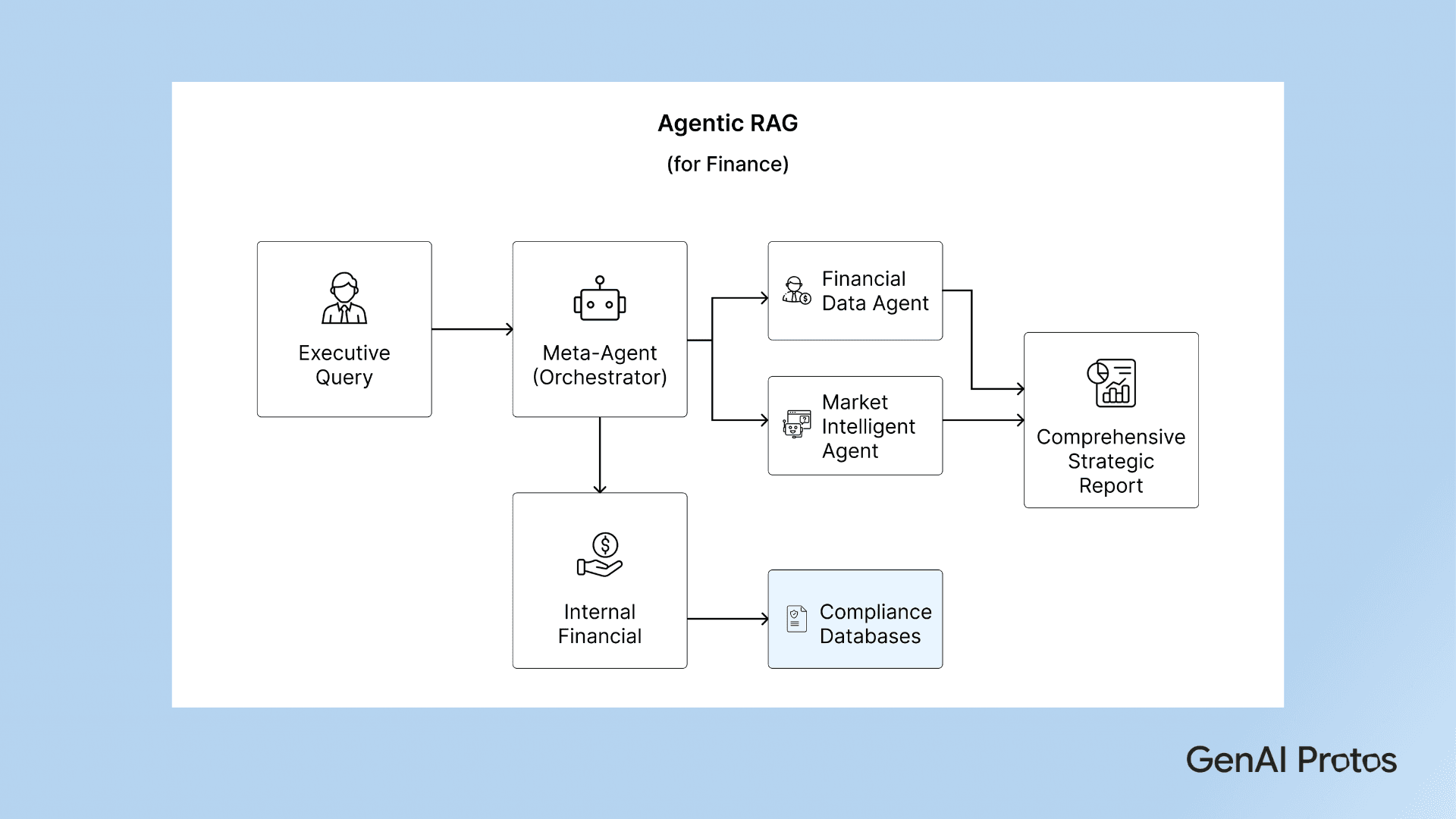

8. Agentic RAG (Multi-Agent Orchestration)
Agentic RAG represents the most advanced form of retrieval architecture. Instead of a single LLM pipeline, it employs a meta-agent that decomposes complex tasks into subtasks handled by specialized AI agents.
Each agent may use its own retrieval pipeline, vector store, and reasoning logic. Outputs are then aggregated into a coherent, structured response.
This architecture supports multi-step reasoning, strategic planning, and cross-domain synthesis. It enables enterprise AI systems to move from question answering to intelligent task automation.
Best suited for:
- Financial intelligence systems
- Enterprise strategy platforms
- AI-driven decision orchestration
Why Advanced RAG Architectures Matter in 2026
Enterprise AI is transitioning from experimental prototypes to mission-critical infrastructure. Organizations require:
- Grounded LLM outputs
- Vector database optimization
- Real-time enterprise data integration
- AI agent orchestration
- Compliance-aware automation
- Scalable GenAI infrastructure
Advanced RAG architectures provide the structural foundation for building reliable, explainable, and production-grade AI systems.
